Finished Panels

Wall Panels — At the Heart of FIORE

ProcessHot pressing, cold-press lamination, UV coating, and continuous wrapping give us the flexibility to turn a wide range of surface materials into consistently finished panels.

ResultsFinished wall panels retain the mineral core’s fire performance, low emissions, and dimensional stability. Close joints, edge-banding, and on-site fabrication give designers more freedom in the final detail.

Construction & Finishes

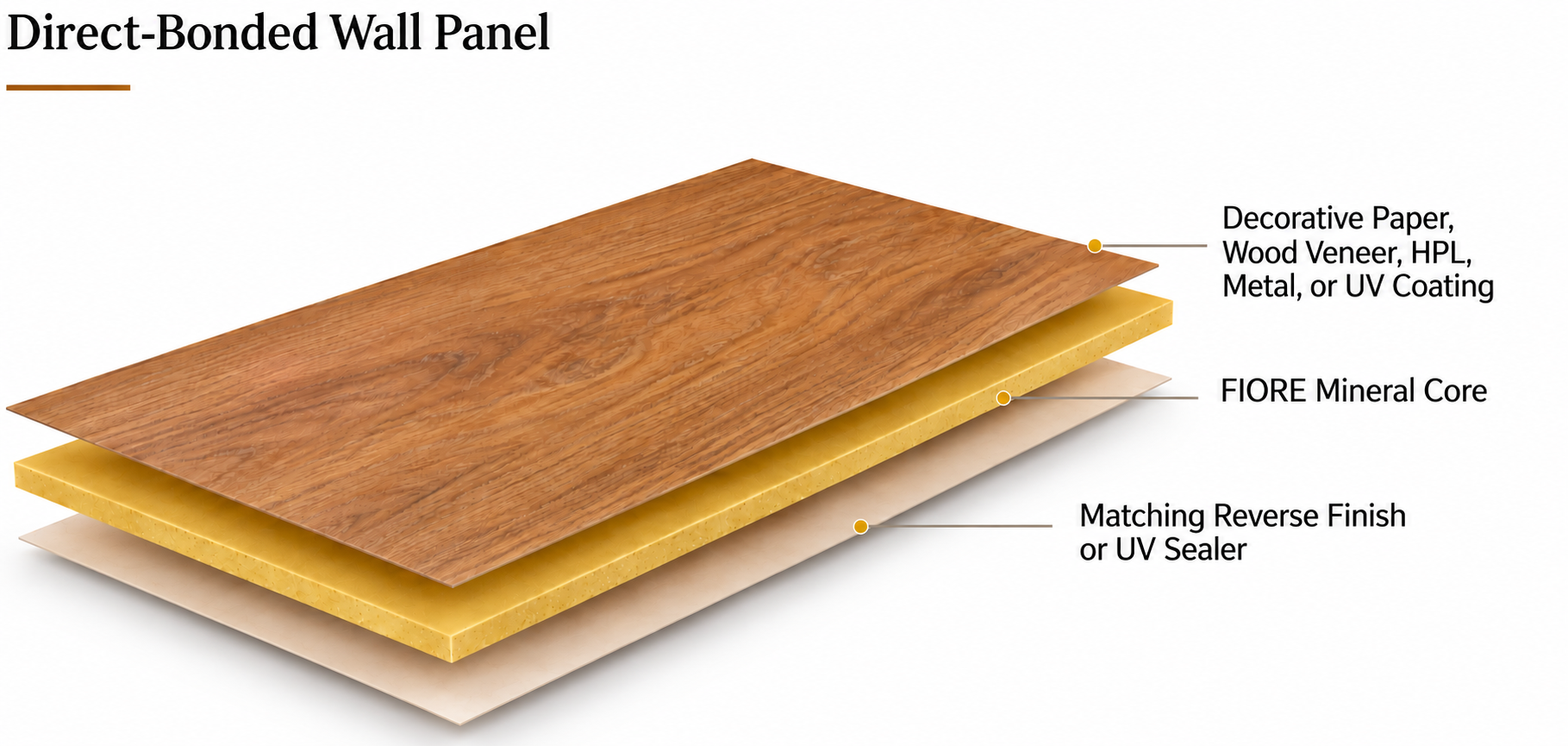

Direct-bonded wall panel with surface finish, mineral core, and back treatment

SPECIFICATIONS

Panel Sizes	1220 × 2440 mm605 × 2440 mm1220 × 3050 mm
Thickness	6 / 8 / 10 / 12 mm
Surface Options	Wood / Stone / Textile / Solid Colour Metallic / Digital Print

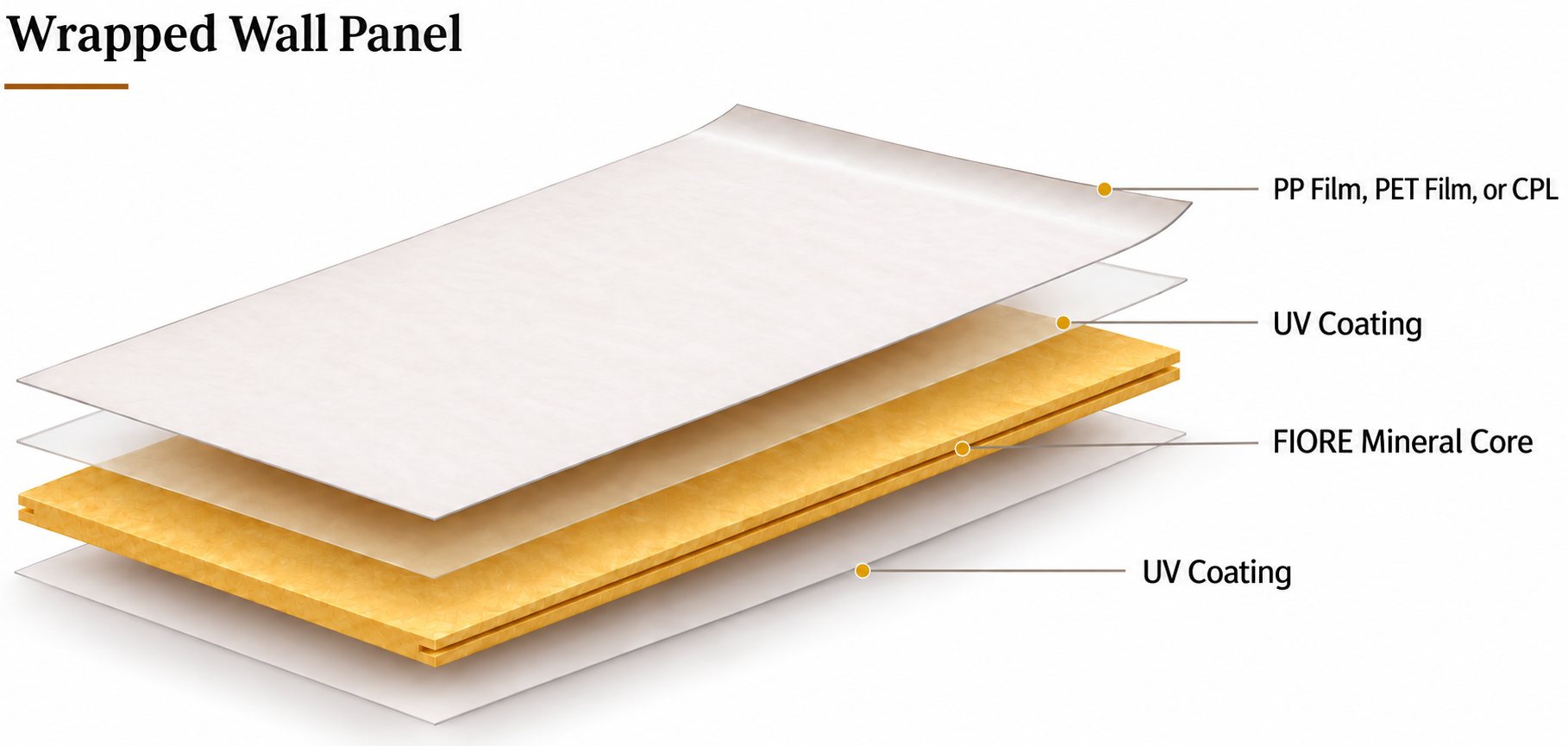

Wrapped mineral wall panel with surface finish and UV coating

SPECIFICATIONS

Panel Sizes	1220 × 2440 mm605 × 2440 mm1220 × 3050 mm
Thickness	8 / 10 / 12 mm
Surface Options	Wood / Stone / Textile / Solid Colour

Installation Details

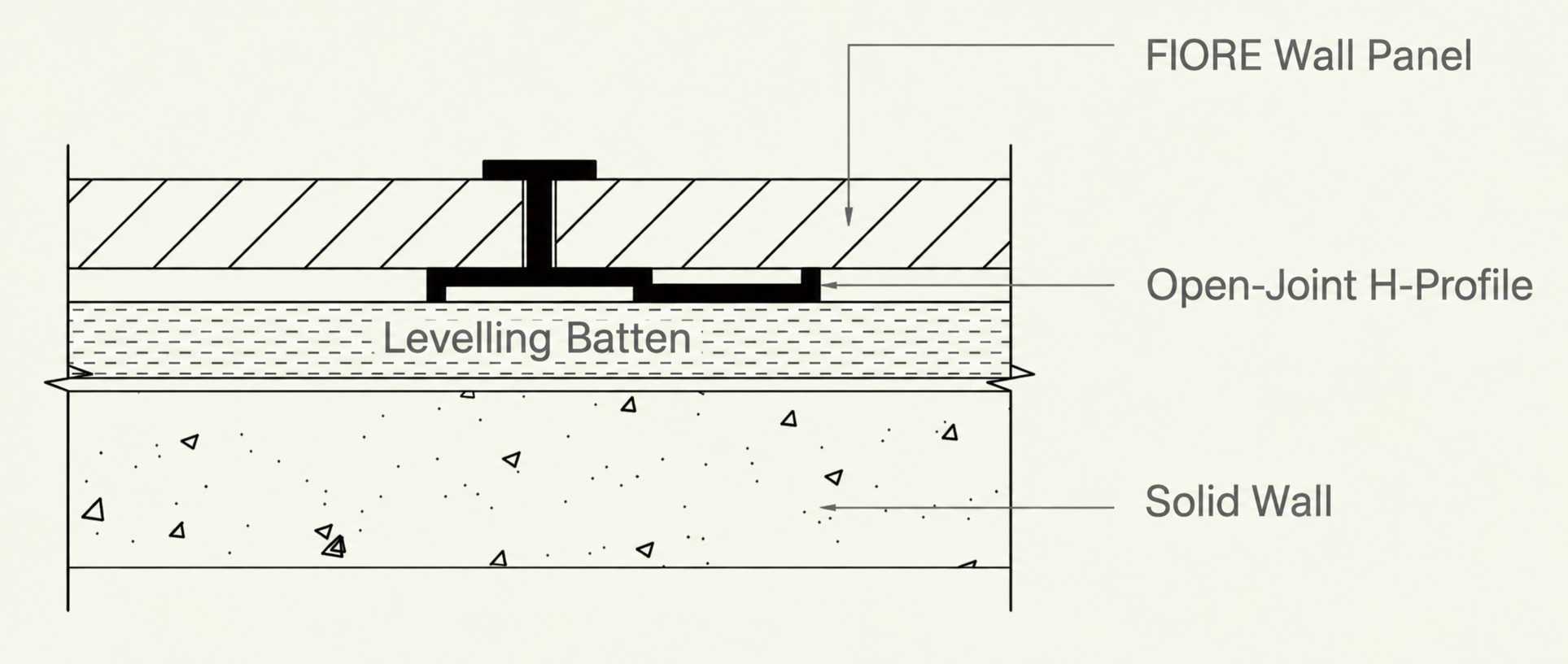

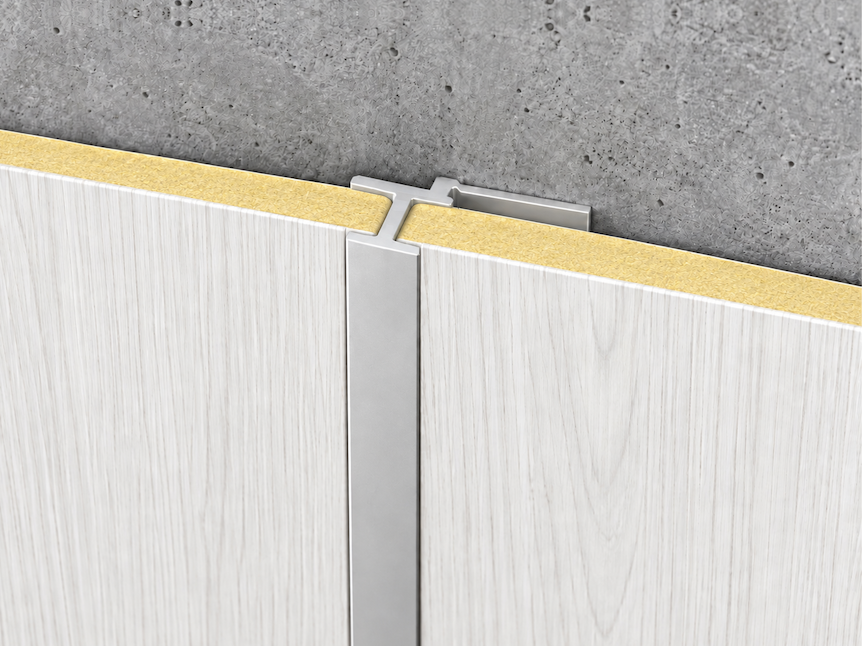

Open-Joint Wall Fixing

H-Profile Connector

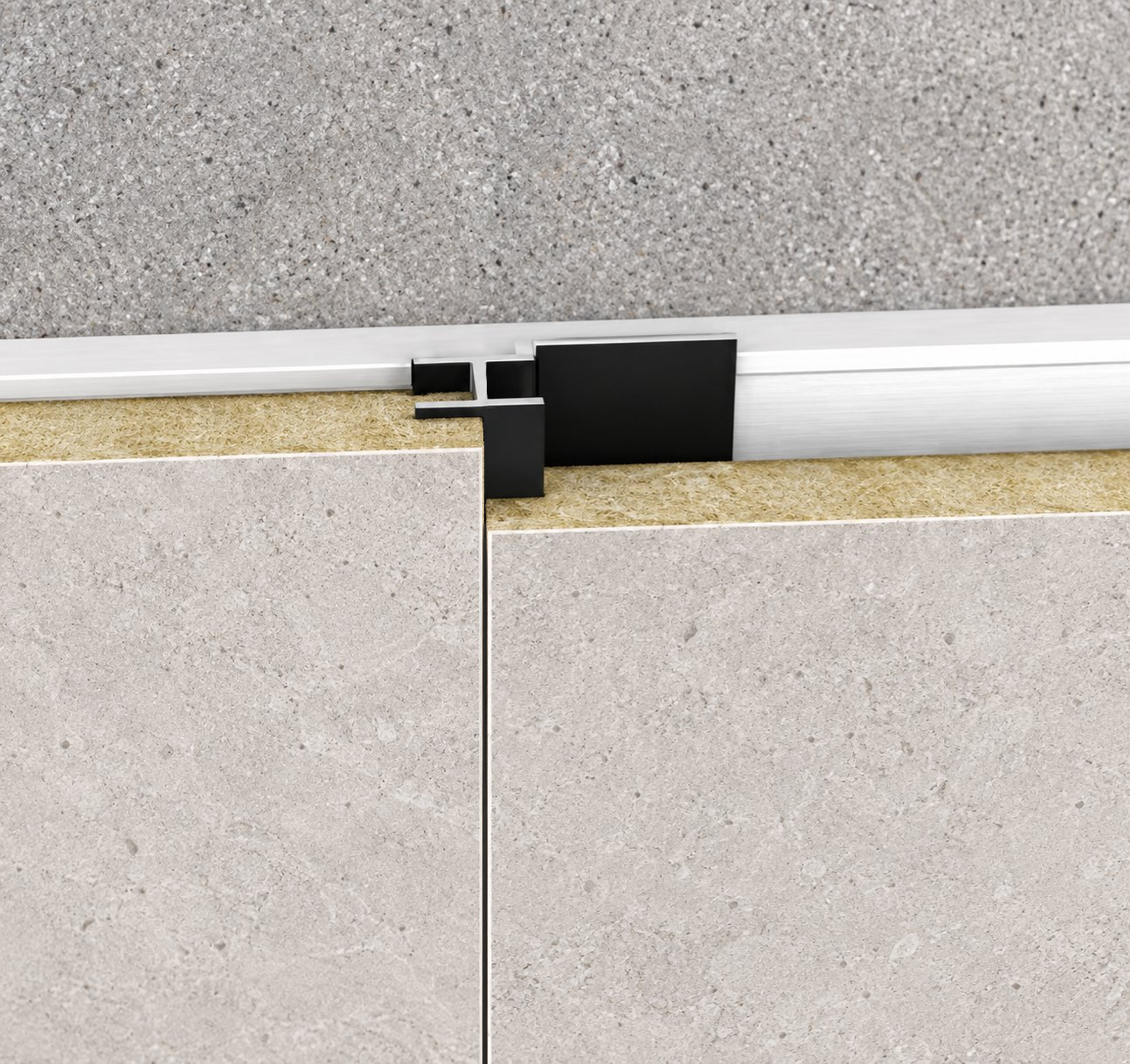

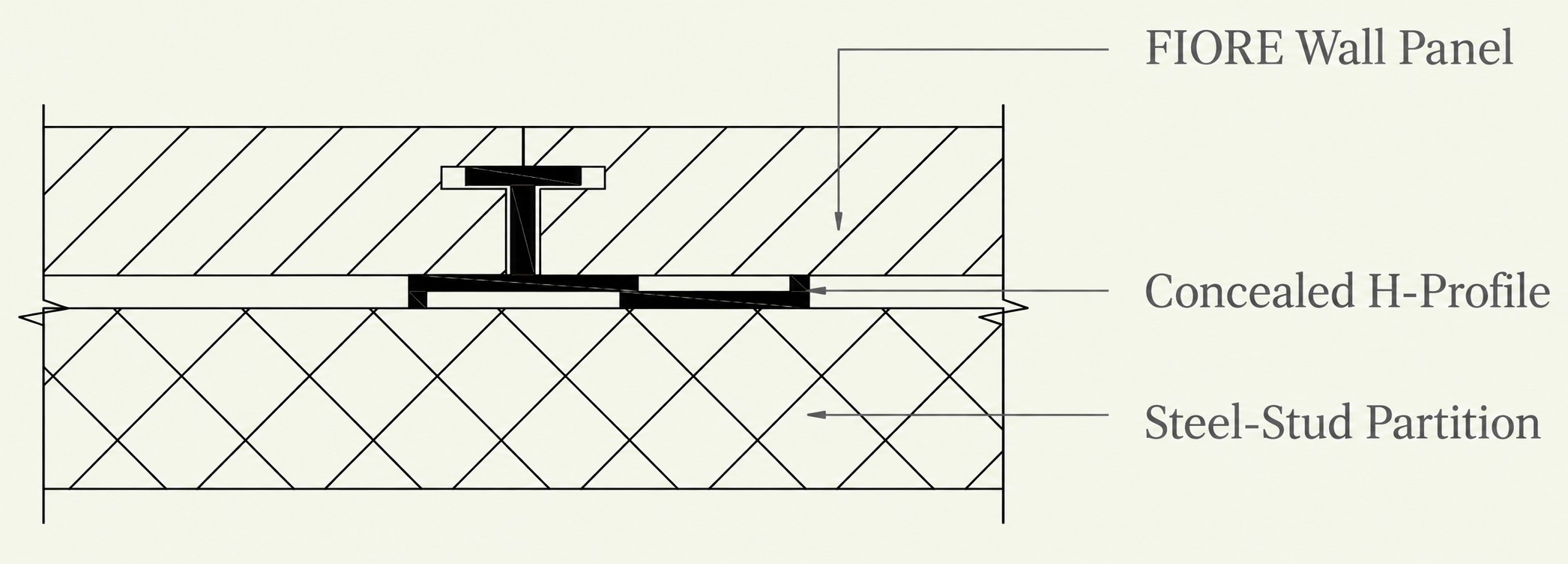

Concealed-Joint Wall Fixing

Concealed H-Profile Connector

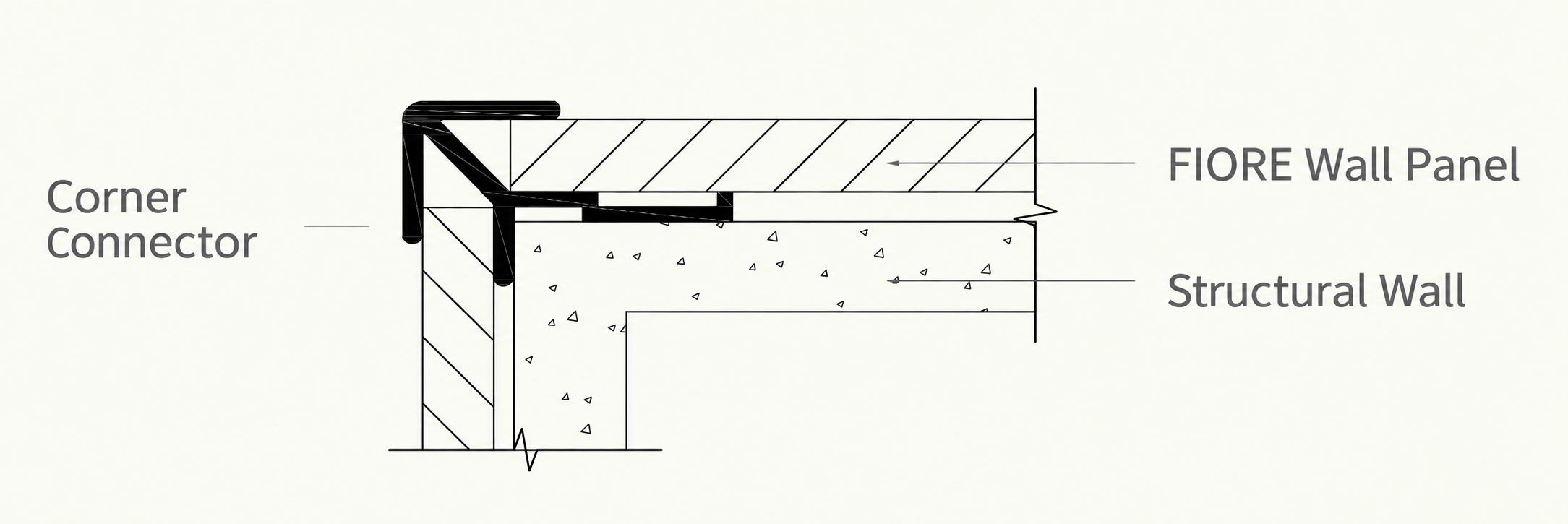

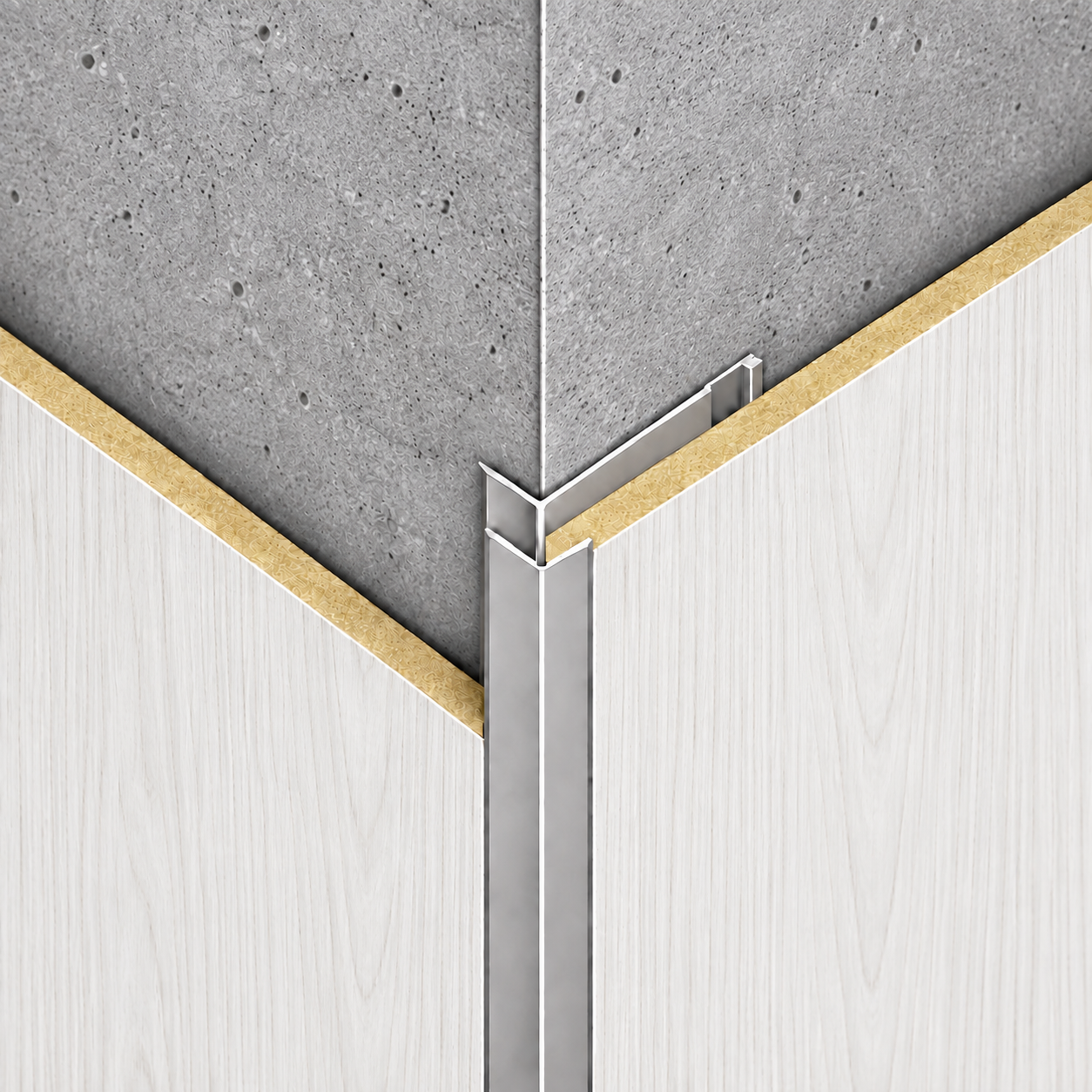

Modular External Corner

Square-Corner Connector

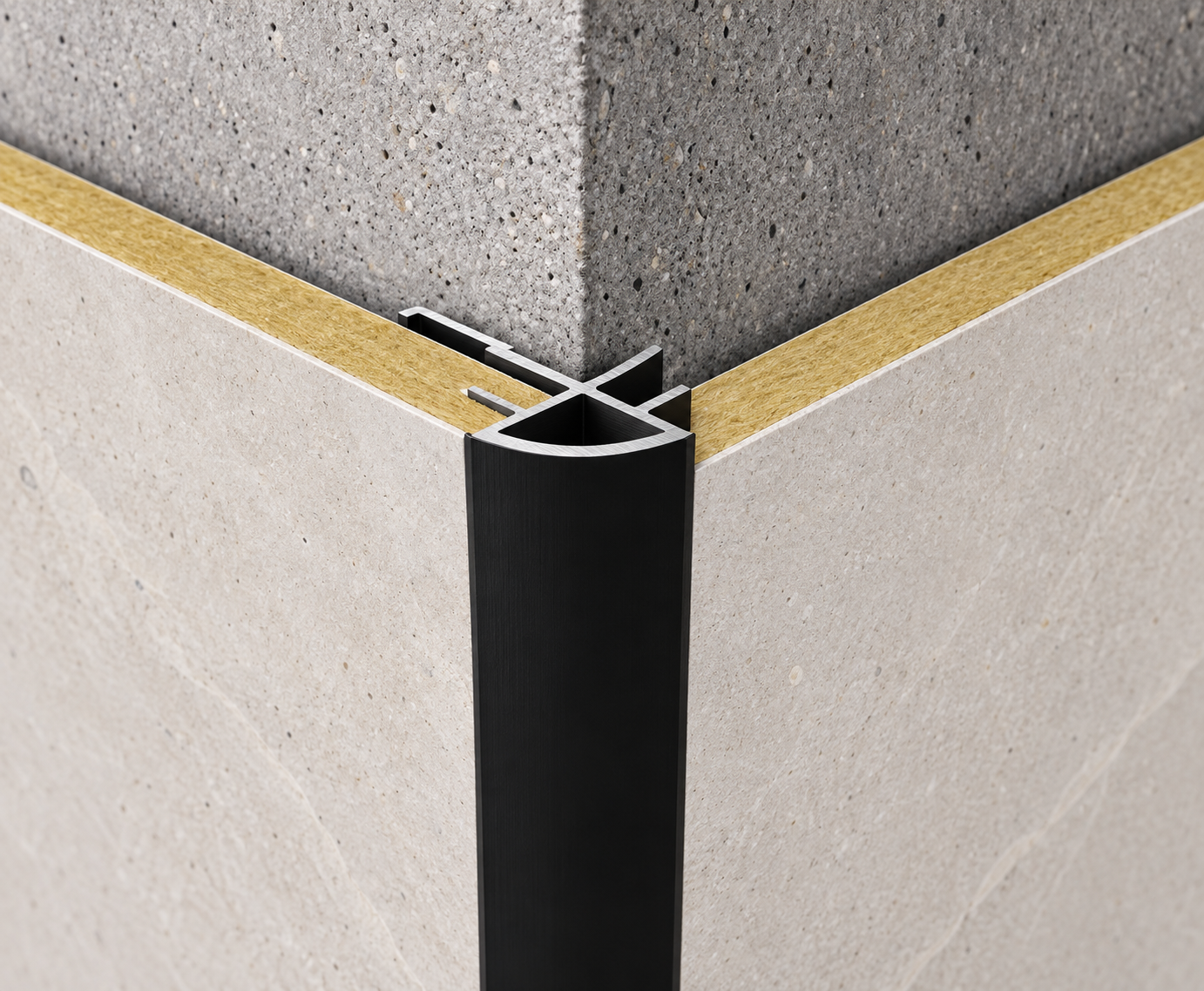

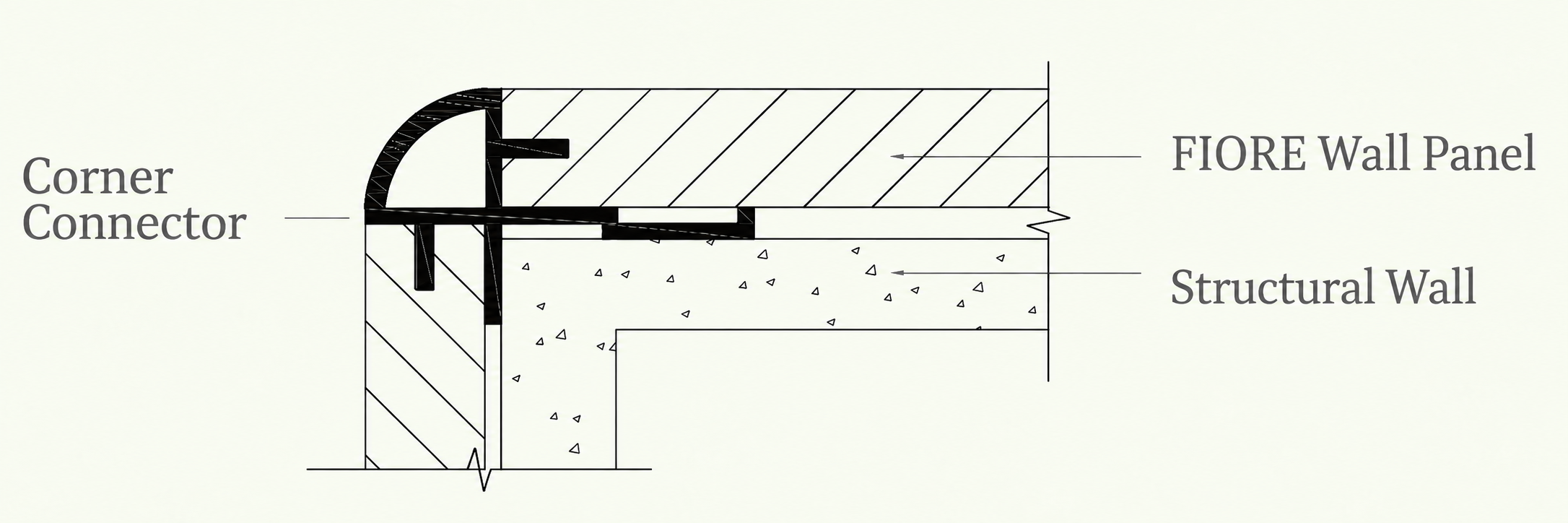

Modular External Corner

Rounded-Corner Connector

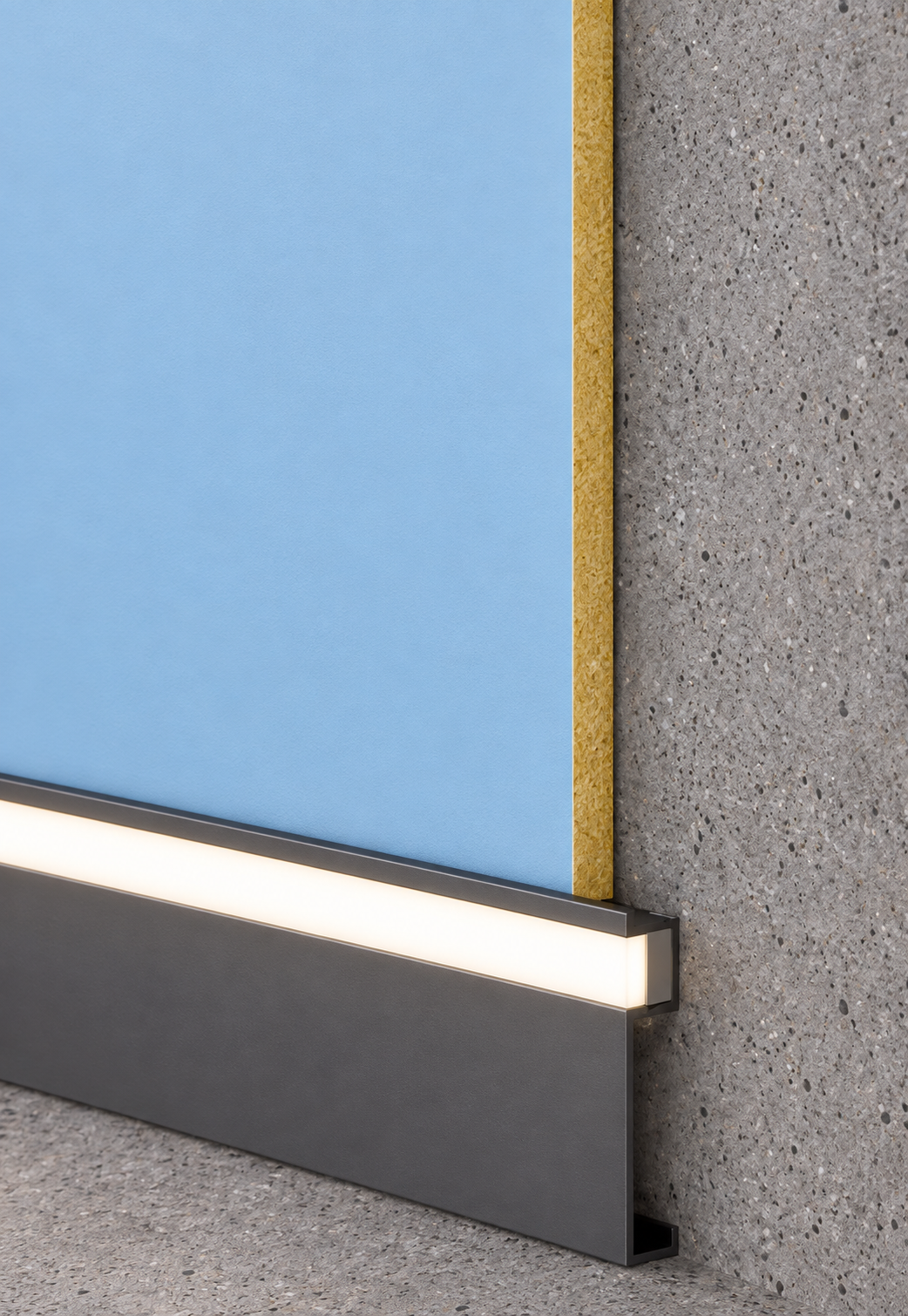

Modular Skirting

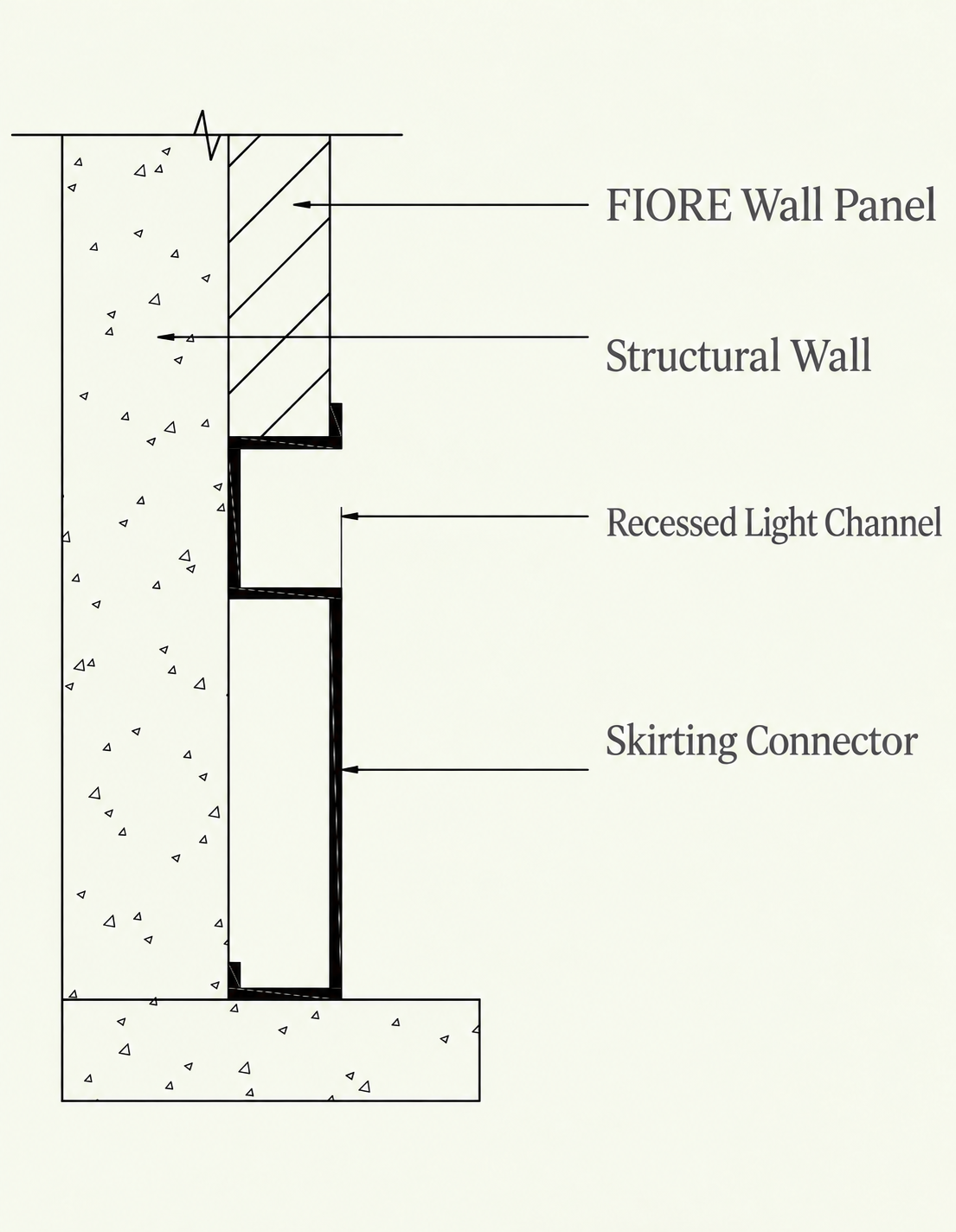

Integrated Lighting Detail

For accessories and details, contact us.

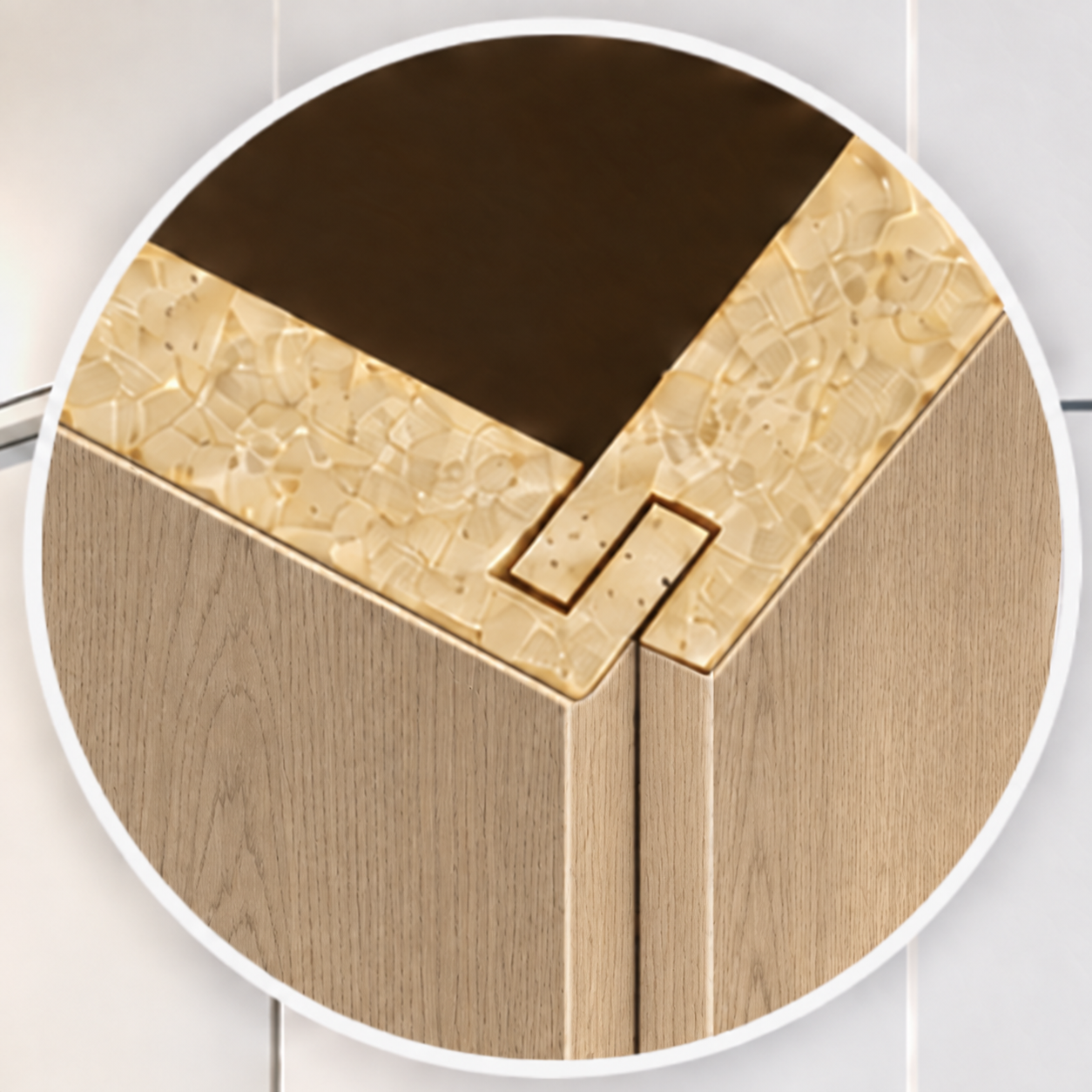

Mitred Corners & Edge Banding

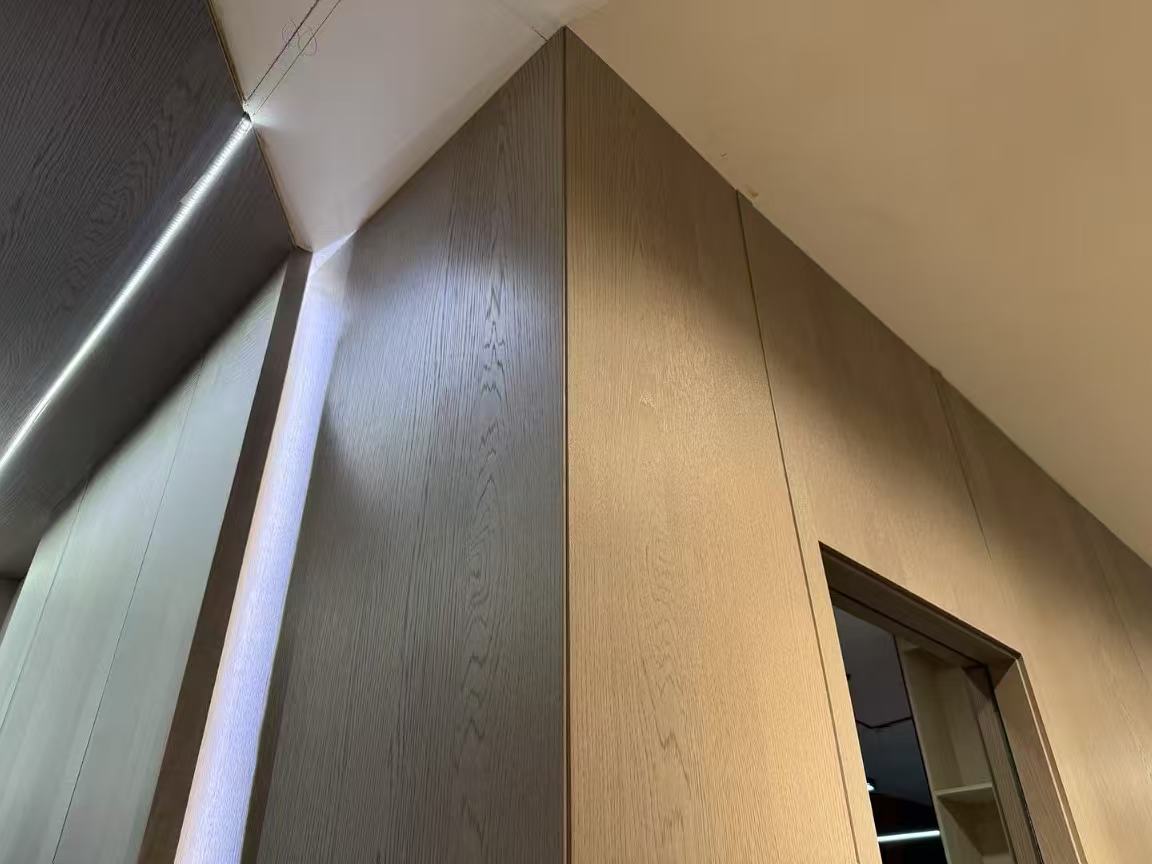

Mitred woodgrain wall panels around a corner and doorway — In the Finished Space
A continuous finish across corners, walls, and doorways

In the Finished Space
A continuous finish across corners, walls, and doorways

Continuous finishes at corners, window reveals, and doorways keep grain and edges aligned.

Edge-banding has long been a major technical challenge for inorganic fire-resistant boards. FIORE makes it possible where it was previously unavailable, while a strong internal bond keeps machined joints precise and robust.

A workable core, more finishes, and flexible fabrication make fine detailing possible—and give designers more freedom.

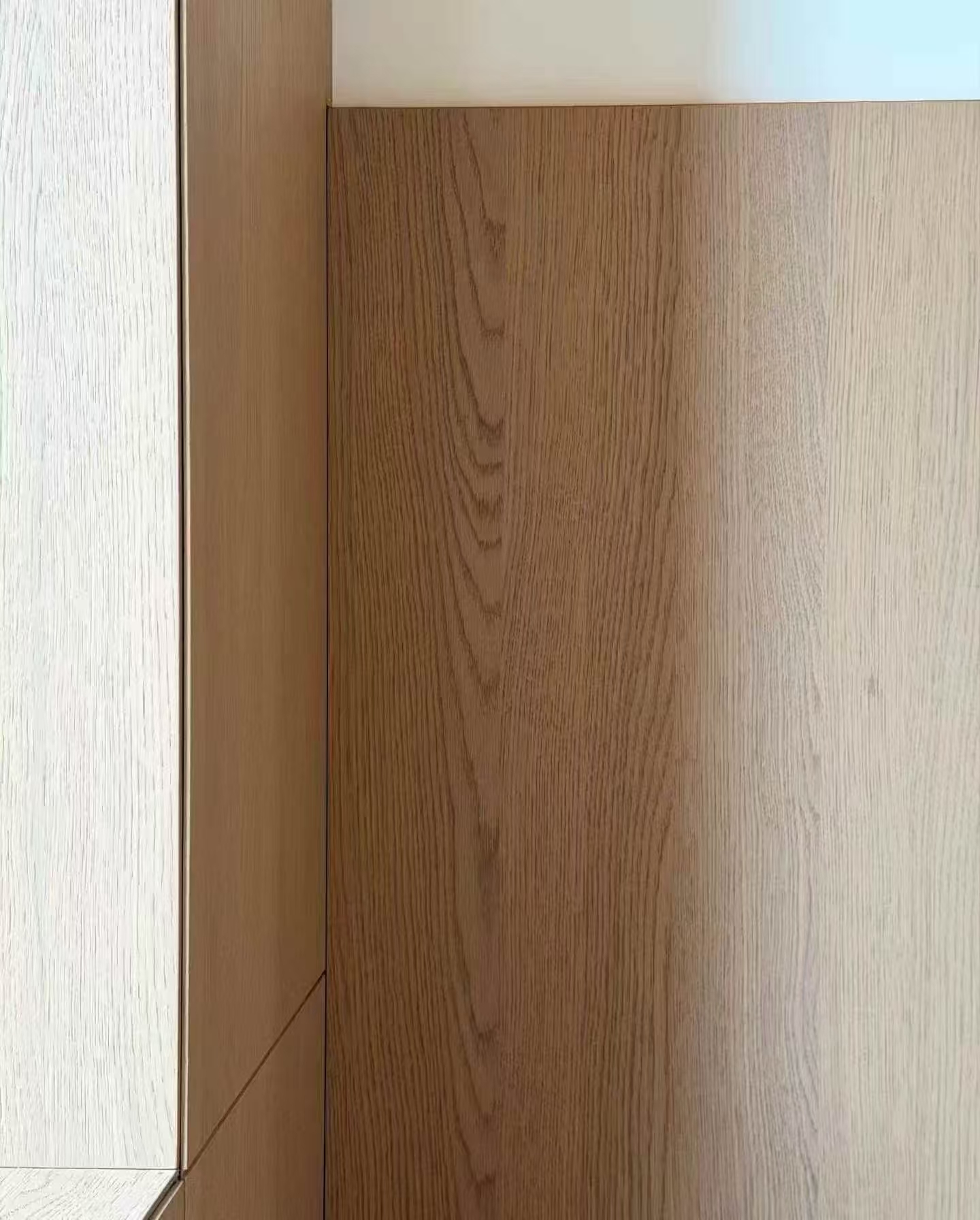

Vertical mitred edge on a woodgrain wall panel — Vertical Edge Detail

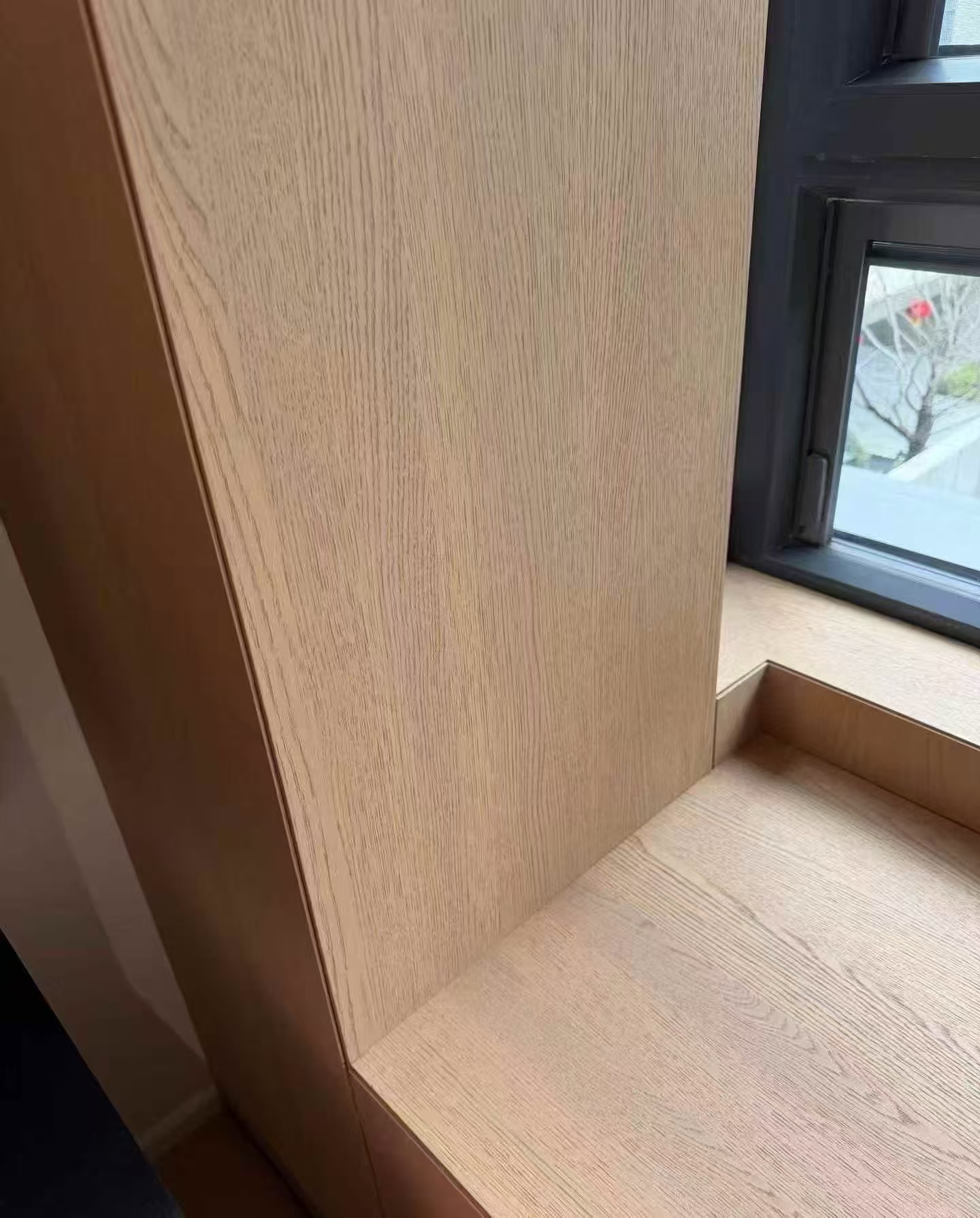

Mitred woodgrain wall-panel detail at a window reveal — Window-Reveal Corner Detail

Why Mineral Flooring?

BenefitsGood flooring starts with a dependable core. FIORE mineral flooring offers fire performance, low emissions, dimensional stability, and thermal and acoustic benefits.

ResultsVery low dimensional change and moisture-related swelling support large-area layouts, giving a space a cleaner, more connected appearance.

Floor Construction

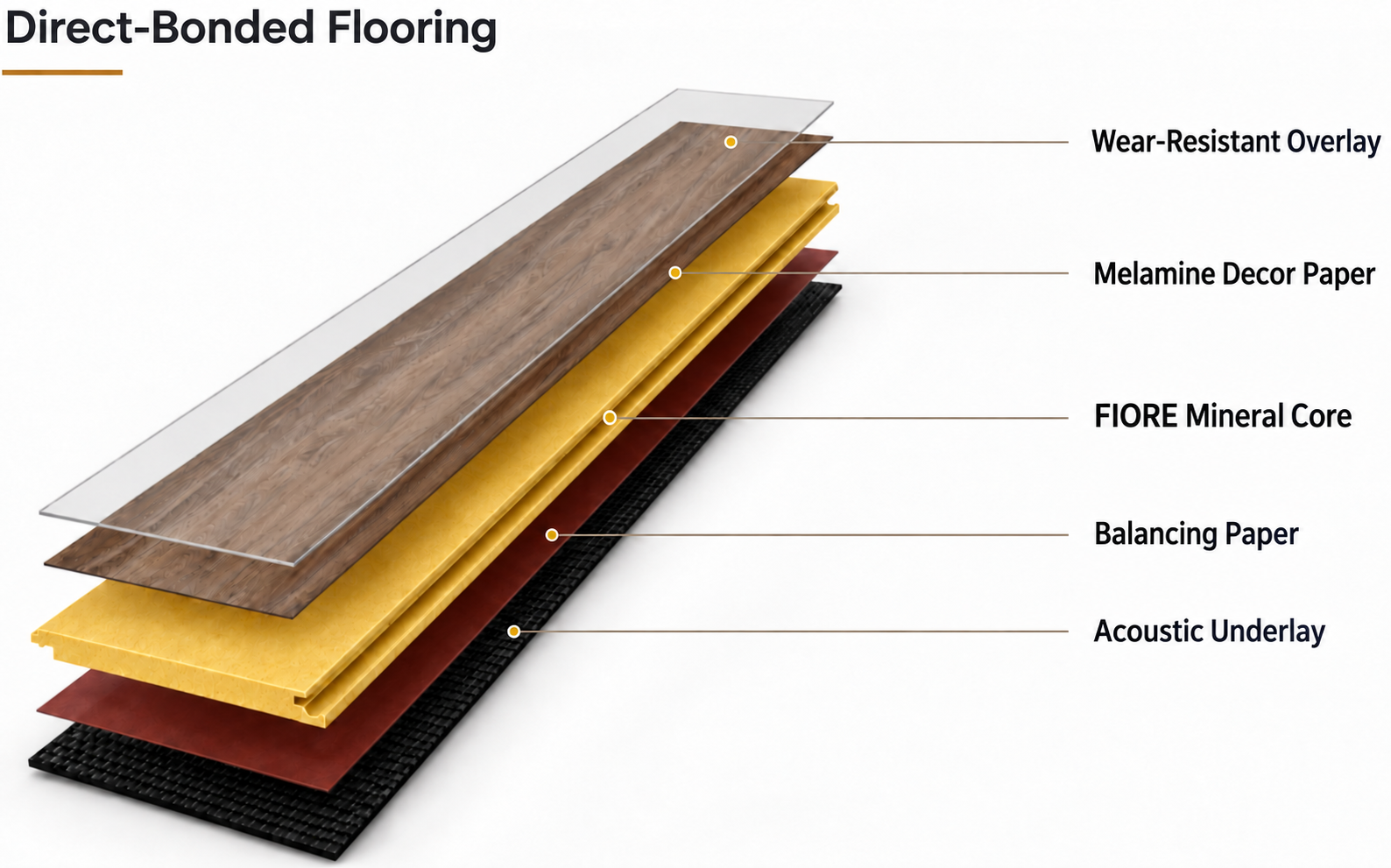

Direct-bonded mineral flooring with wear layer, melamine decor, FIORE mineral core, balancing layer, and acoustic underlay

Fire Performance
Eco-Friendly
Ideal for Underfloor Heating
Designed for Large-Area Layouts

SPECIFICATIONS

Panel Sizes	191 × 1210 mm 230 × 1520 mm
Thickness	8 / 10 mm
Finishes	Wood / Stone / Textile

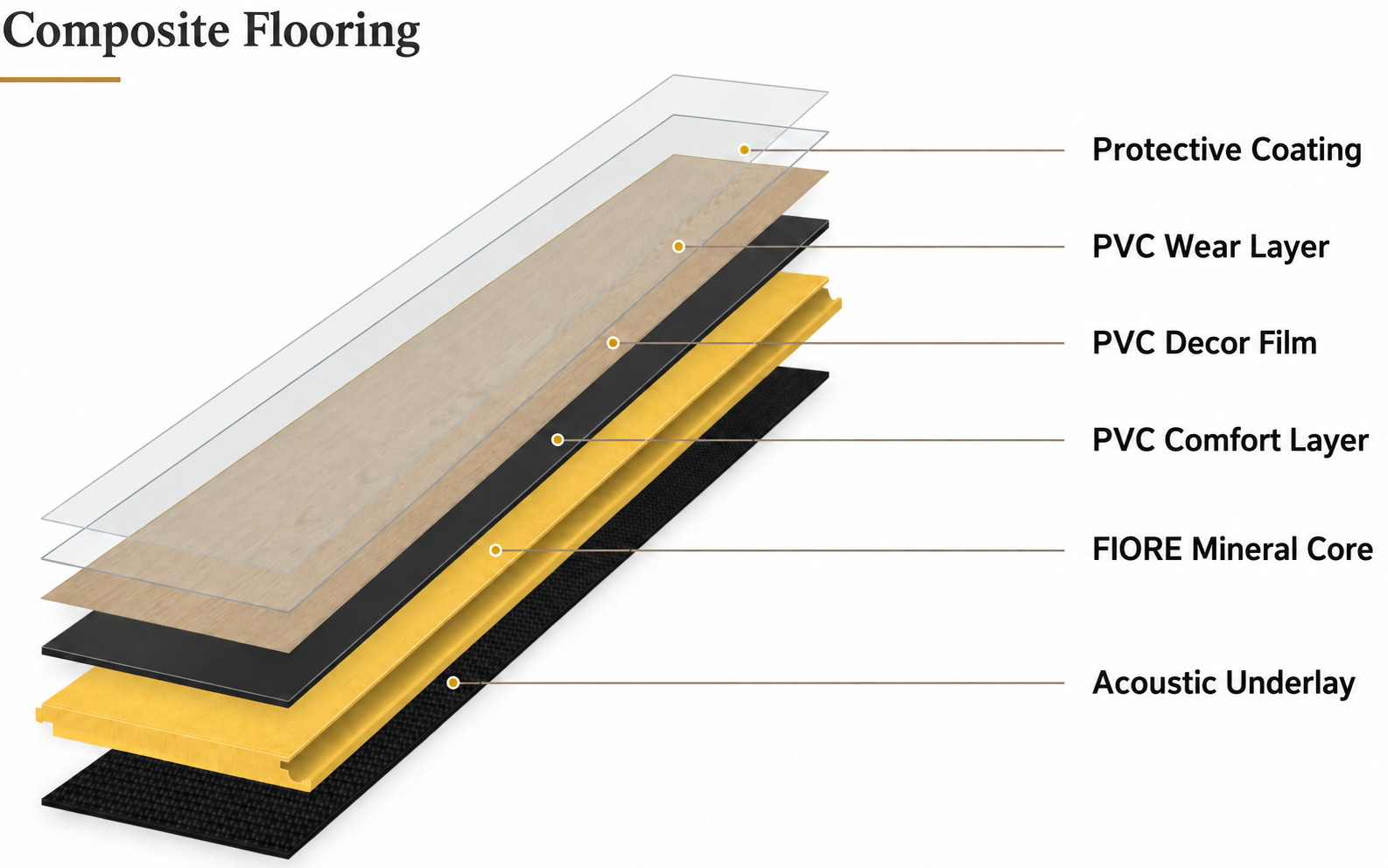

Composite mineral flooring with coating, PVC wear, decor, and comfort layers, FIORE mineral core and acoustic underlay

A 2 mm PVC surface over the mineral core adds comfort underfoot, with crisp pattern definition and a refined coated finish.

SPECIFICATIONS

Panel Sizes	191 × 1210 mm 230 × 1520 mm
Thickness	10 / 12 mm
Finishes	Wood / Stone / Textile

Flooring Compared

LowerModerateHigher

Swipe to explore the full table →

Seven flooring types compared across ten performance measures
Performance	Solid Wood	Engineered Wood	Laminate	SPC	WPC	MgO	FIORE Mineral Flooring
Water Resistance	Lower	Lower	Lower	Higher	Higher	Moderate	Higher
Wear Resistance	Lower	Lower	Higher	Higher	Higher	Higher	Higher
Scratch Resistance	Lower	Lower	Moderate	Lower	Lower	Higher	Higher
Indentation Resistance	Moderate	Moderate	Moderate	Higher	Moderate	Higher	Higher
Dimensional Stability	Moderate	Higher	Moderate	Higher	Moderate	Higher	Higher
Comfort Underfoot	Higher	Higher	Moderate	Moderate	Higher	Moderate	Moderate
Ease of Maintenance	Moderate	Moderate	Moderate	Higher	Higher	Moderate	Higher
Material Affordability	Lower	Moderate	Higher	Higher	Moderate	Moderate	Moderate
Fire Performance	Lower	Lower	Lower	Moderate	Moderate	Higher	Higher
Formaldehyde Emissions	Higher	Moderate	Moderate	Higher	Higher	Higher	Higher

For material selection only. These are typical comparisons; performance varies by brand, product, manufacturing method, and conditions of use. Refer to the technical documents for your selected product.

Flooring Test Data

Swipe to explore the full table →

Mineral flooring test data for 8 mm samples
Test Item	Test Standard	Requirement	Unit	8 mm Result
Heat Dimensional Change (80 °C × 6 h) · Length	ISO 23999	≤ 0.15%	%	0.03
Heat Dimensional Change (80 °C × 6 h) · Width	ISO 23999	≤ 0.15%	%	0.02
Heat Curling (80 °C × 6 h)	ISO 23999	≤ 1.0	mm	0
Expansion Coefficient · Length	Internal Standard	≤ 6.0 × 10⁻⁵ °C⁻¹	× 10⁻⁵ °C⁻¹	0.1
Expansion Coefficient · Width	Internal Standard	≤ 6.0 × 10⁻⁵ °C⁻¹	× 10⁻⁵ °C⁻¹	0.1
Bending Strength · Length	EN 310	≥ 18	MPa	23
Bending Strength · Width	EN 310	≥ 18	MPa	21
Residual Indentation	ASTM-1914	≤ 2%	%	0.87
24-Hour Water Swelling · Length	EN 317	≤ 0.3%	%	0
24-Hour Water Swelling · Width	EN 317	≤ 0.5%	%	0
24-Hour Water Swelling · Thickness	EN 317	≤ 0.8%	%	0
Water Absorption (72 h)	GB 17657	≤ 12%	%	7.34

Results shown are for tested 8 mm samples. Refer to the relevant batch documentation for supplied-product performance.

LARGE FORMAT INSTALLATION

Space to Go Further.

Large-area woodgrain flooring installed at Linyi Airport in Shandong — Linyi Airport Project, Shandong · Large-Area Installation Example

A seamless floor appearance relies on dimensional stability built into the product, rather than on-site fixes. This supports close-jointed installation over long distances.

Easy Joints

Dimensional stability and wear resistance support close joints in busy public spaces.

Low Absorption. Minimal Swelling.

Low absorption and minimal swelling help keep maintenance simple.

One Flowing Space.

Continuous flooring creates a more open, cohesive space.

Beyond the Facade.Into Outdoor Living.

CoreLow water absorption, low swelling, and high dimensional stability make FIORE mineral board a reliable base for exterior finishes.

ClimateFIORE exterior boards could reduce the risk of panel deformation, topcoat cracking, fading, and moisture damage from sun, rain, humidity, and temperature changes.

Exterior Construction

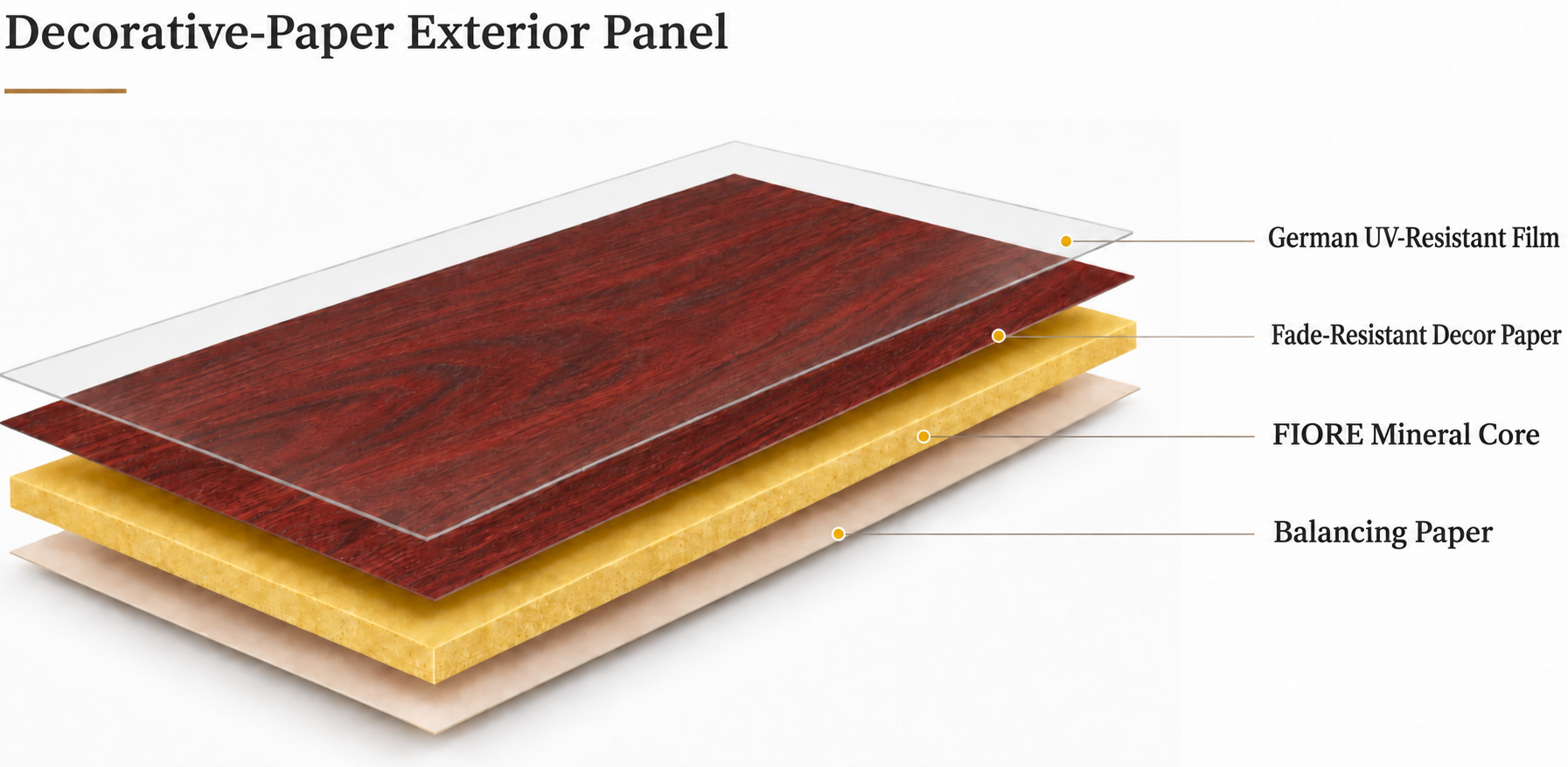

Exterior mineral panel with German UV-resistant film, fade-resistant decorative paper, mineral core, and balancing layer

SPECIFICATIONS

Panel Sizes	1220 × 2440 mm605 × 2440 mm
Thickness	8 / 12 / 15 / 24 mm
Finishes	Wood / Stone / Textile / Solid Colour Metallic / Digital Print

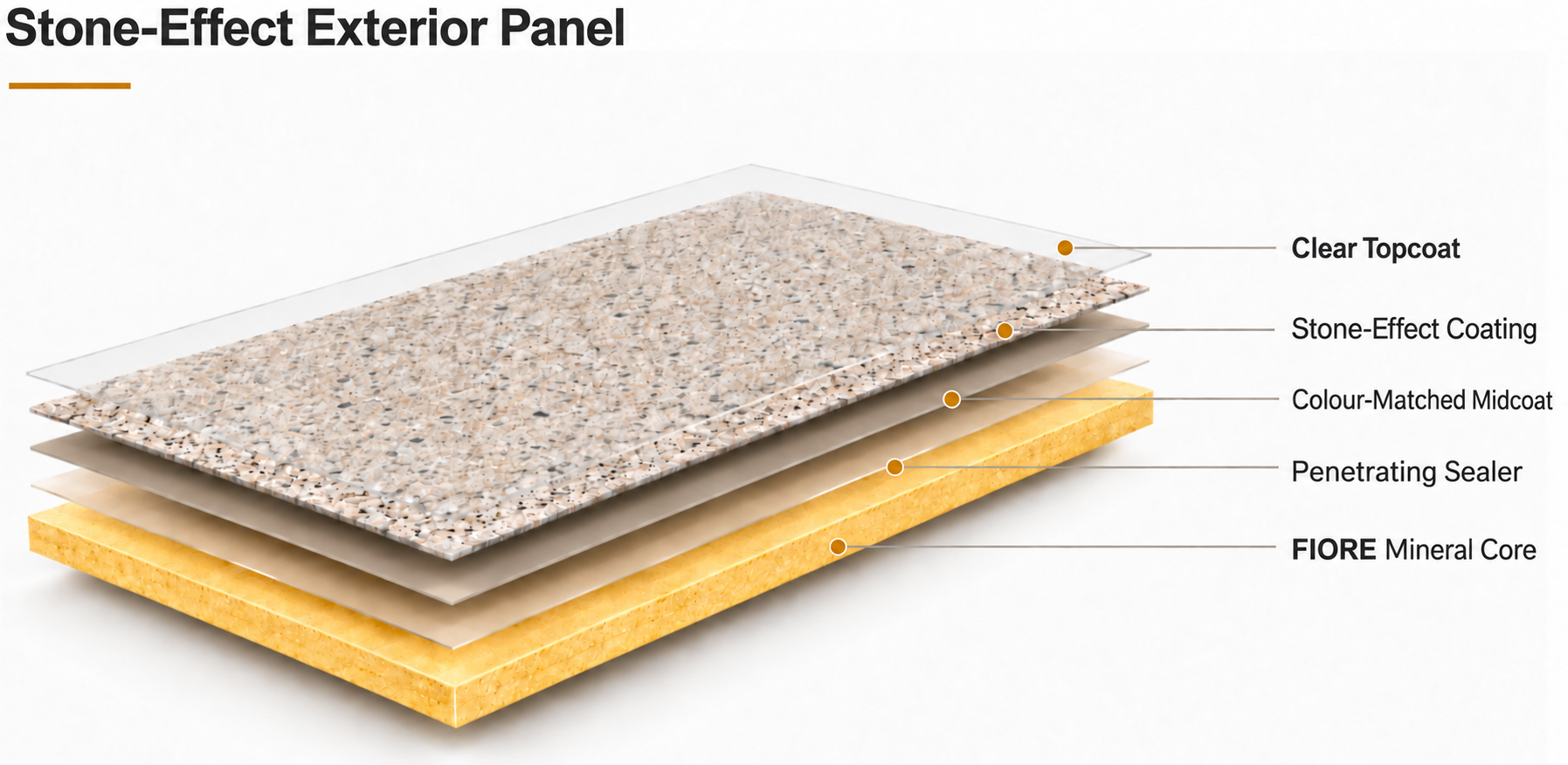

Mineral panel with clear topcoat, textured stone-effect coating, colour-matched intermediate coat, and penetrating sealer

SPECIFICATIONS

Panel Sizes	1220 × 2440 mm605 × 2440 mm
Thickness	8 / 12 / 15 / 24 mm
Finishes	Stone-effect coating colours

Surfaces for Outdoor Living

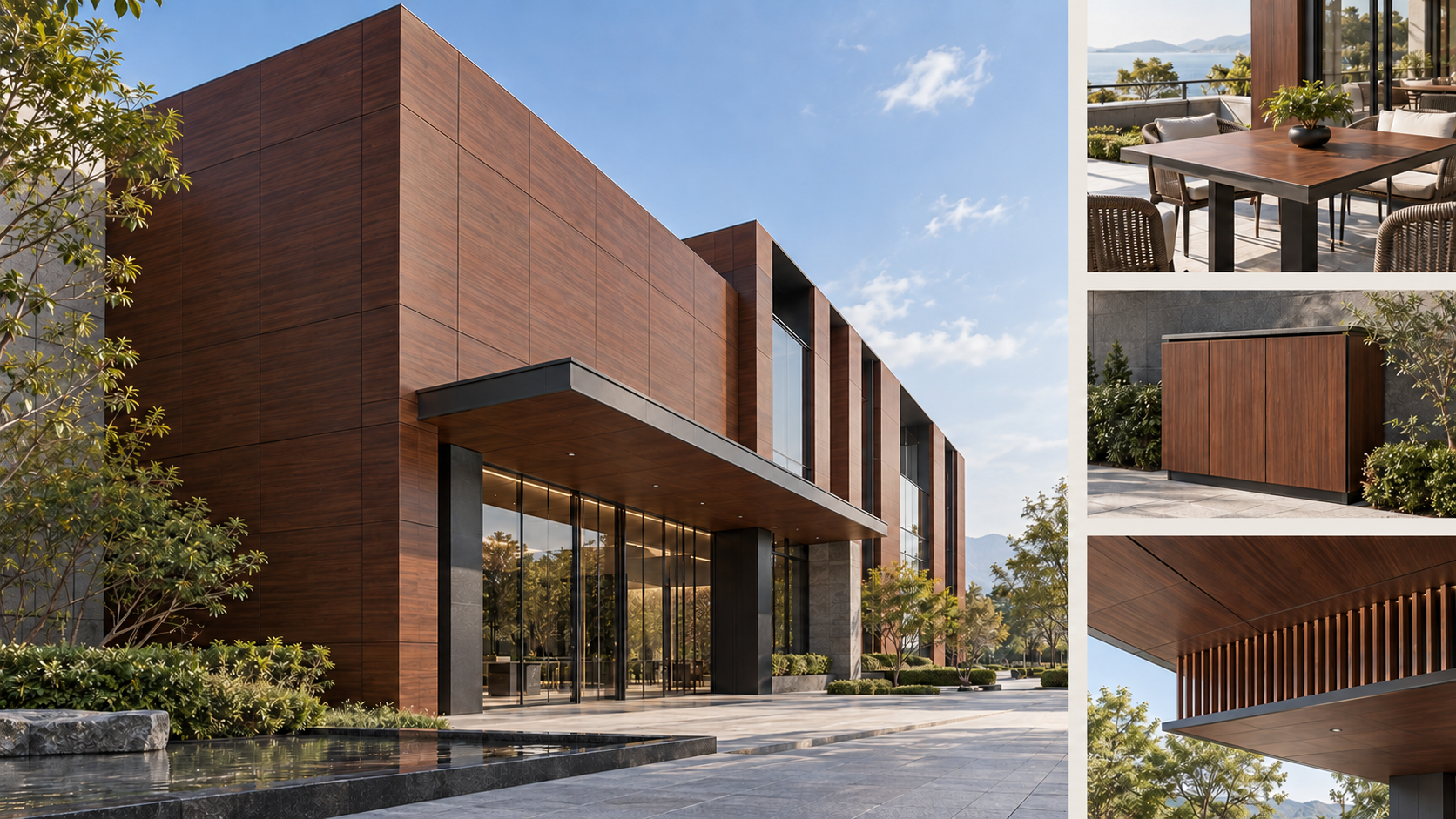

Deep red woodgrain panels on a facade, outdoor surfaces, cabinetry, and soffits — Exterior panels across outdoor applications

A wide choice of colours and finishes. FIORE exterior panels bring design freedom and distinctive character to outdoor spaces.

APPLICATION DIRECTIONS

Facades, balconies, and soffits
Outdoor tabletops and benches
Outdoor cabinetry and planters

One Core. Four Uses.
